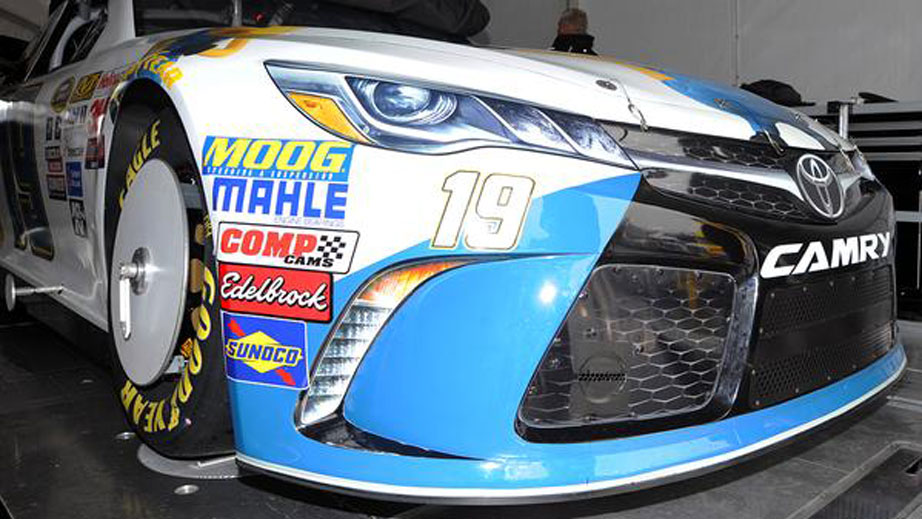

Photo – Getty Images
NASCAR Débuts Lower Downforce Aero Package at Atlanta
This weekend, the NASCAR Sprint Cup Series will début its much-anticipated lower downforce 2016 aerodynamics package.
The package is similar to the ones used at Kentucky and Darlington last year.
Lowering the downforce on a car makes it harder to drive, which puts more emphasis on driver skill and increases the potential for more passing.
Changes to the car for this season’s aero package include reductions to:
- Spoiler – 2015: 6” tall, 2016: 3.5” tall
Air coming over the top of the car hits the spoiler, which pushes the back of the car down. A shorter spoiler creates less downforce than a taller spoiler.
- Splitter – 2015: 2” overhang, 2016: .25” overhang
The splitter ‘splits’ air and forces it to accelerate under the car, creating a high-pressure zone above the splitter and a low-pressure zone underneath that sucks the car down. Shortening the splitter reduces downforce.
- Radiator Pan – 2015: 38” wide, 2016: 33” wide
The radiator pan is a flat panel that extends behind the splitter and under the car, deflecting air to create more downforce. A narrower panel is less effective in deflecting air, which slows airflow and creates less downforce.

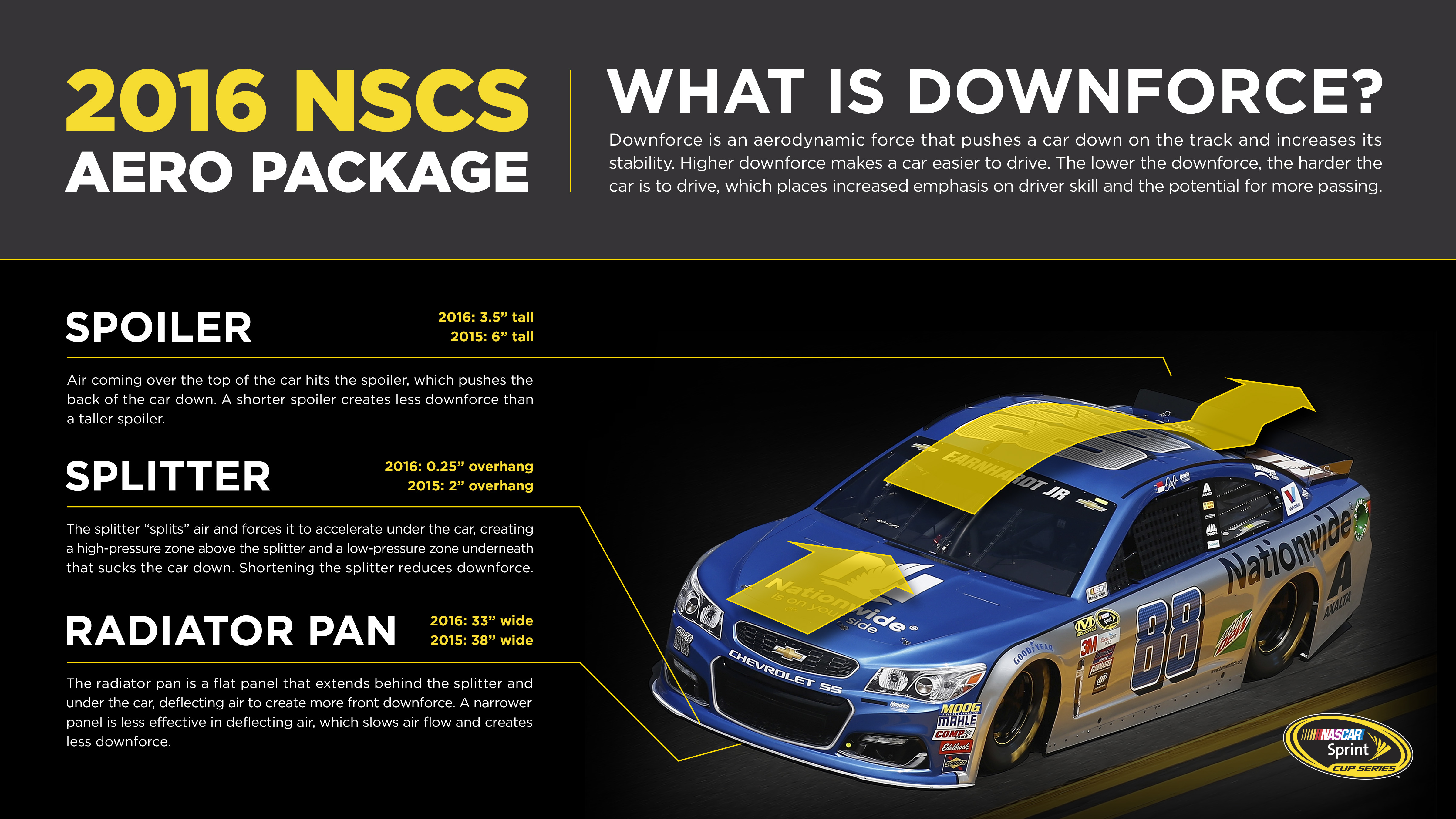

Click here to view an infographic on the 2016 NASCAR Sprint Cup Series aero package
